Sagittarius Overdrive Boost

The Sagittarius Overdrive Boost includes two great discrete effects in one space saving pedal. A very transparent overdrive with presence coupled with our Scorpio Super Boost! The two effects are wired in series with the ability to choose effect order. OD into Boost or Boost into OD.

An original design, merging qualities of two great overdrive pedals. The Sagittarius marries the crisp, non-compressed, transparent qualities of the Timmy OD with the in your face presence of the Klon in one package. The overdrive section's gain structure ranges from a soft boost to a semi-heavy grind with emphasis on low compression and lots of presence. Unlike the Virgo, Taurus, and Capricorn pedals from our line, which add tons of gain and compression at high gain settings, this overdrive is more of a pure overdrive; very transparent and crisp. Every nuance of guitar and amplifier combinations will shine through. It is a great effect to keep on all the time to set your "base tone". The overdrive does not change your guitar and amplifier combination's tone but just pushes it a bit more, enhances it and adds tons or presence. Couple it with controls for bass and treble and take over total control of your tone. Its a game changer.

The Sagittarius boost section is actually our Scorpio Super Boost! pedal. Undoubtedly the most popular Celestial Effects pedal to date.

The effects order switch is accessed through a small hole on the bottom of the case. The latching push-button switch sets the order of the two effects. (A pencil eraser works great to set the switch but be gentle).

When gently pushed and latched "IN" or "DOWN", the order of the two effects is Boost into Overdrive.

When Sagittarius is configured in Boost into Overdrive mode, the Boost is wired first in the chain allowing the user to use the Boost to "push" the overdrive. With both effects ON, the volume knob will control the overall volume of the signal out of the Sagittarius.

When gently pushed and latched "OUT" or "UP", the effects order is Overdrive into Boost. This is the default position for the pedal.

When Sagittarius is in Overdrive into Boost mode, the volume knob will control only the overdrive section's overall volume and not the Boost section, which is now last in the chain. Turning on the boost section in this mode, will add a significant volume boost allowing the user to use this Boost section as a volume boost for leads and solos.

The tones derived from both modes are significantly different.

Pedal Order Selector Switch


The Sagittarius Overdrive Boost is a true bypass pedal and uses no buffers in its design. There is very little noise filtering in the circuit which allows your guitar's entire signal to come through.

The Sagittarius Overdrive Boost is extremely touch sensitive and responds beautifully to every nuance of your guitar playing.

Built like a tank using the best components available - including an all metal powder coated enclosure, CTS pots and Switchcraft jacks. Totally hand built, this pedal will keep you rocking for many years to come.

Celestial Effects recommends the use of a HIGH QUALITY 9 VDC regulated power adapter with the Sagittarius Overdrive Boost pedal like the Carl Martin Powerjack 9VDC power supply or similar. This power supply is capable of providing 1000 mA of power and is noise free. The more the capacity of the power supply, the less chance of noise and hum due to a power supply being pushed to its current capability limits.

All Celestial Effects pedals are hand built and individually hand tested in Hudson, MA by a company that cares about quality, durability and value. We back all our products with our 30 DAY NO QUESTIONS ASKED MONEY BACK GUARANTEE
Listen to tracks recorded with the Sagittarius >>

Sagittarius Overdrive Boost User Manual View and download the Sagittarius User Manual

More Pictures of Sagittarius

Celestial Effects Sagitarius Overdrive Boost Ryan Kelly John Kelley Shango Celestial Effects Sagittarius Overdrive Boost Lou Pedals

Pedalboard Pictures with Sagittarius

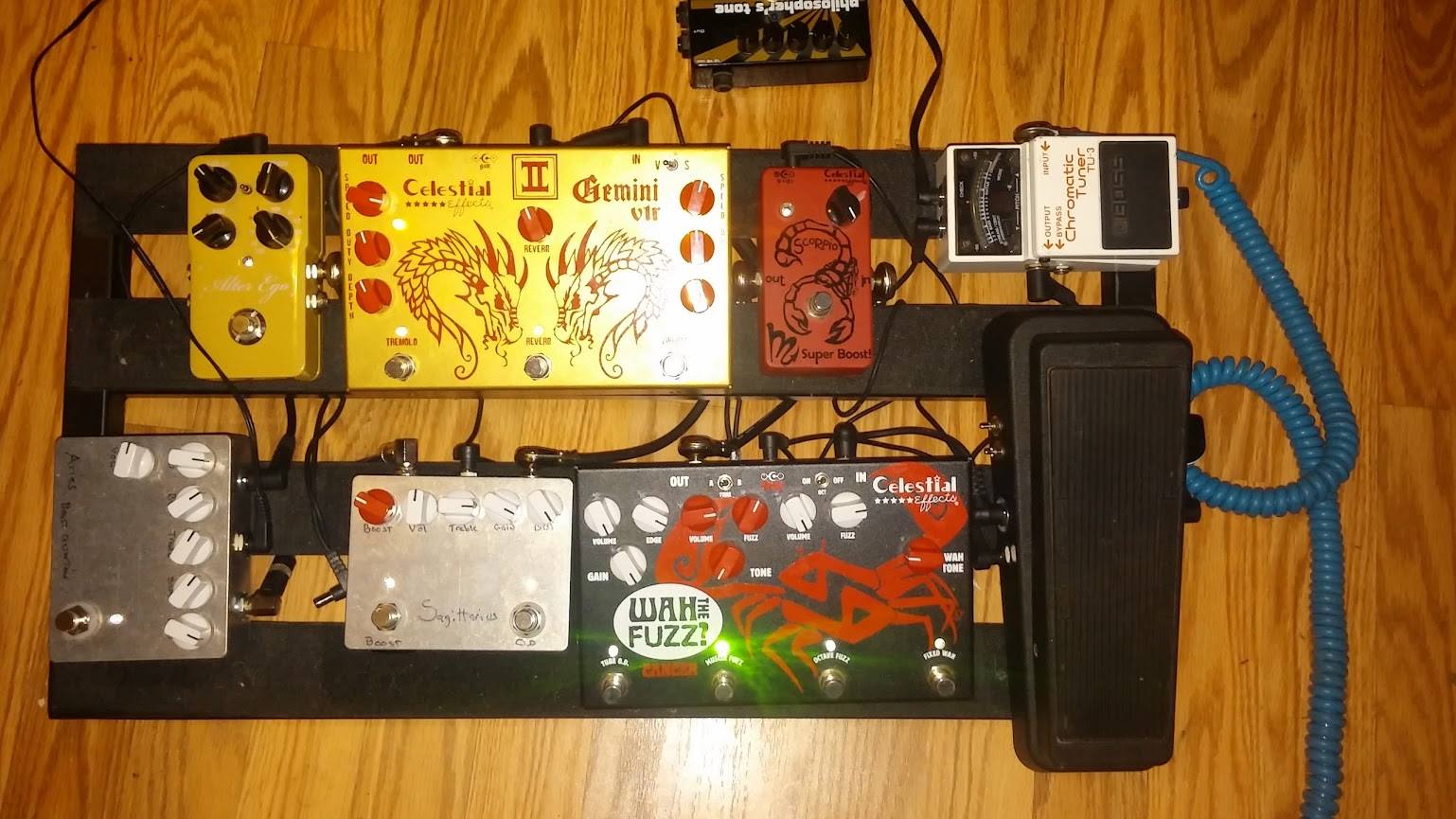

John Kelley's Pedalboard Giordano's Viper Pedalboard George Keller's Pedalboard

Video Demos

Sagittarius Overdrive Boost

Sagittarius Overdrive Boost Demo
Mike Zito

Sagittarius Overdrive Boost

Sagittarius Overdrive Boost Demo

Sagittarius Overdrive Boost Demo by Pedal of the Day

Sagittarius Overdrive Boost Demo
Pedal of the Day

Sagittarius Overdrive Boost  Demo & Shootout by Celestial Effects

Sagittarius Overdrive Boost Demo & Shootout
Produced by:
Gino Caira and Celestial Effects

When it Rains by Shawn

Shawn Maginness
When it Rains (Cover)
Sagittarius Oberdrive Boost
On all electric guitars


Pedal of the Day

Pedal of the Day
Sagittarius Overdrive Boost

Tone Report Weekly

Tone Report Weekly
Sam Hill
Sagittarius Overdrive Boost


• True bypass switching via high grade 3PDT footswitch
• High grade Panasonic ECQ series capacitors
• CTS high grade potentiometers
• Switchraft input and output jacks
• Wide 2oz. copper PC board circuit etch-lines in the signal paths
• PC Board ground plane for superior stray noise reduction
• Battery or +9vdc (only) power jack (Boss type - center negative)
• Controls are Volume, Drive, Treble, Bass and Boost
• Pushbutton Switch to select order of effects OD>Boost or Boost>OD
• Ultra-bright indicator LEDs
• Extremely tone transparent, organic and touch sensitive
• Input impedance: 1 Meg Ohms
• Output impedance: 1K Ohms
• Current draw: Approximately 22 mA at full ON
• Dimm: 5.00"d x 4.00"w x 2.40"h (including switches and knobs)
• Weight: 12.1 oz. (Not including battery)


"The new Sagittarius from Celestial Effects is outstanding! You won't find a better overdrive from a pedal, and it plays well with any amp."
"Ryan Kelly - Ryan Brooks Kelly"

"Received the new pedal today...thanks for expediting. It sounds fabulous going into my Vox AC10 and Egnater Tweaker 15...terrific pedal. I've left it in the default order of overdrive into boost. It has a smooth breakup character and is exactly the sound I'm looking for...well done."
"George Keller"
